ZWCAD 2019

ZWCAD provides familiar Classic and Ribbon interfaces. With the similar CAD commands, you can use ZWCAD immediately without any re-learning cost.

Seamless Compatibility with DWG and other CAD files

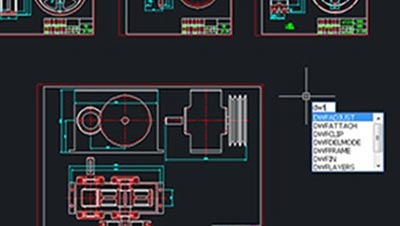

The seamless .dwg compatibility enables you to open and continue your previous design work, and share your drawings with coworkers and clients, making the workflow more fluent.

Compatibility ZWcad

COMPATIBILITY

Compatibility-2

Open or save DWG/DXF drawings from ACAD.

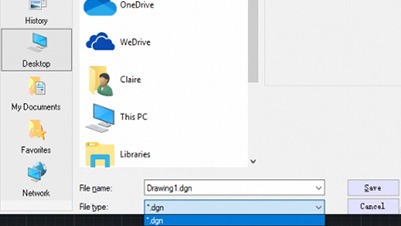

Import DGN files, exchange drawings with MicroStation ®.

Import DGN files, exchange drawings with MicroStation ®.

Innovation

Smart Voice Add annotation with voice record

Smart Voice

Add annotation with voice record

Smart Mouse Trigger commands by mouse gesture

Smart Mouse

Trigger commands by mouse gesture

Smart Select

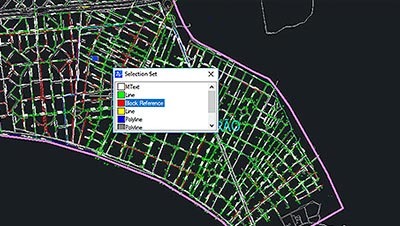

Multi-filter for selection, select objects that match certain properties

Barcode & QR Code

Barcode & QR Code

Convert text information as barcode or QR code and embed in the drawing

2D Drafting

Auto-complete Command Input Help to find commands more quickly

Auto-complete Command Input

Help to find commands more quickly

MText

MText

Multi-line text, full text editing functions

Images

Images

Insert raster images, support formats like JPEG, PNG and BMP

Block

Block

Collect geometry together into one object which you can use repeatedly

External Reference

External Reference

Attach other DWG drawings as references

Table

Table

Use table to present data like revision table or bill of materials

MLeaders

MLeaders

Attach multi-leader annotations

Associative Dimension

Associative Dimension

Dimension adjusted along with the geometric objects

Revision Cloud

Revision Cloud

Mark the revision items with free-form clouds around them and call attention to them

Layer Properties Manager

Layer Properties Manager

Set layer properties like color, linetype and VP Freeze

Attribute Block

Attribute Block

Block embeds textual information such as inventory numbers, prices, description and more

Zoom and Pan

Zoom and Pan

Pressing the mouse wheel or rolling to pan and zoom, easily manipulate the view

Advanced Tools

Dynamic Block

Dynamic Block

Create and modify Dynamic Block

Match Property

Match Property

Apply existing style to other objects

Insert OLE Object

Insert OLE Object

Use document from other applications

File Compare

File Compare

Compare two similar drawings and highlight the differences

Tool Palettes

Tool Palettes

Organize, share, and place commands, blocks, and other tools

Super Hatch

Super Hatch

Use block, external drawing, or image as hatch pattern

Reference Manager

Reference Manager

Manage all external resources like text, image and drawing

Object Isolation

Super Hatch

Use block, external drawing, or image as hatch pattern

Reference Manager

Reference Manager

Manage all external resources like text, image and drawing

Object Isolation

Object Isolation

Control the visibility of specified objects

Quick Calculator

Quick Calculator

Perform calculation within CAD just as you would with a desktop calculator

Block Attribute Manager

Block Attribute Manager

View, edit and synchronize attributes in batches

Design Center

Design Center

Search and access your design resources easily

PDF and DWFx underlay

PDF and DWFx underlay

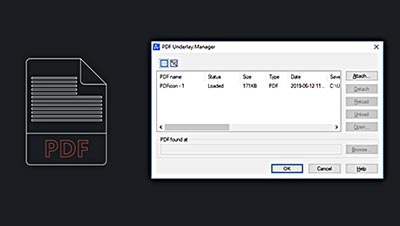

Attach PDF and DWFx as underlays

Annotative Object

Annotative Object

Make annotations always readable in different plotting scales

3D Features

Modeling

Modeling

Create and modify 3D model with solid, surface and mesh modeling tools

Viewing

Viewing

View freely with 3D Orbit, and get offset or perspective view with camera target simulation

img_5_1
img_5_2

Visualizing

Set visual style like wireframe, hidden and shade, get a photorealistic view with rendering

Output

Print with STB/CTB plot style

Print with STB/CTB plot style

Assign how things print such as color, lineweight and linetype etc

Print or publish in other formats

Print or publish in other formats

Output DWG drawings to other formats for sharing

Smart Plot

Smart Plot

Plot multiple frames from Model space all at once

APIs

ZWCAD supports LISP, VBA, ZRX, and .NET application programming interfaces, many vertical applications are already working perfectly with ZWCAD.
